We invented port powered RS-232 tp optical fiber converter. CHINA patent:ZL03335086ZL03335087、ZL03335088 ,etc
Main Advantage:
1.OPT232[S]-9 needs only RXD、TXD、GND          2. OPT232[S]-9 is the smallest in the world
3.OPT485、OPT485S has RS-232/RS-485/RS-422      4.OPT-CAN needs no set, no software

Use the mouse to right click on the all kinds of product model and select "save target as" to download a variety of product specifications (.pdf file)
                  RS-232/RS-485/RS-422 to optical fiber
  Model         Function   Fiber Mode    Characteristics  Power
OPT485S1  RS-232/485/422 to single-fiber  Single&Multi-Mode DB-25/DB-25 size 5V

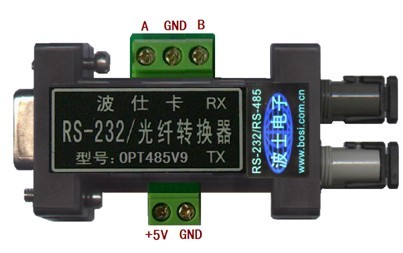

OPT485V9  RS-232/485/422 to optical fiber  Multi-Mode DB-9/DB-9 size 5V
OPT485  RS-232/485/422 to optical fiber  Multi-Mode DB-25/DB-25 size 5V

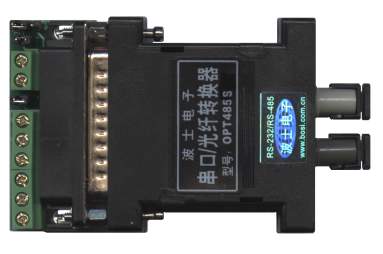

OPT485S RS-232/485/422  to optical fiber      Single-Mode DB-25/DB-25 size 5V

                  Port Powered RS-232 to optical fiber
OPT232S1  RS-232 to optical single-fiber  Single&Multi-Mode DB-9/DB-9 size Port Powered
OPT232-9  RS-232 to optical fiber  Multi-Mode DB-9/DB-9 size Port Powered
OPT232S-9  RS-232 to optical fiber        Single-Mode DB-9/DB-25 size Port Powered

                  Repeater of RS-232/RS-485/RS-422 to optical fiber
OPT35EX RS-232/485/422/optical fiber Repeater  Multi-Mode DB-25/DB-25 size 5V
OPT35EXS RS-232/485/422/optical fiber Repeater       Single-Mode DB-25/DB-25 size 5V

                 CAN to optical fiber, Repeater of  CAN to optical fiber
OPT-CAN  CAN to Optical fiber   Multi-Mode  ST,DB-25/DB-25 size 5V
OPT-CANS  CAN to Optical fiber         Single Mode  ST,DB-25/DB-25 size 5V

                  RS-232/485/422/CAN to Plastic Optical Fiber
OPF232 RS-232 to Plastic Optical fiber   Plastic Fiber DB-9/DB-9 size Port Powered
OPF485 RS-485/422/232 to Plastic Optical fiber   Plastic Fiber DB-9/DB-9 size 5V

                 All signal RS-232 to Optical Fiber, TTL to Optical Fiber
OPT232AL All Signal RS-232 to Optical Fiber Multi-Mode  All Signals 5V
OPT232TL[S] TTL/RS-232 to Optical Fiber Multi[Single]-Mode   TTL & RS-232 5V

               USB to Serial Port Optical Fiber
OPTU232L  USB to Optical Fiber Multi-Mode Serial Protocal  USB powered
OPTU232L1  USB to Optical Fiber Multi-Mode Serial Protocal  USB powered

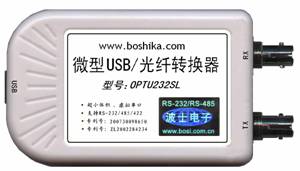

OPTU232SL1  USB to Optical Fiber  Single Mode Serial Protocal  USB powered


      RS-232光纤多机通信图       RS-485光纤多机通信图       安装支架图

    OPT14HUB星形光纤组网多机通信图       OPT22双环光纤组网多机通信图
